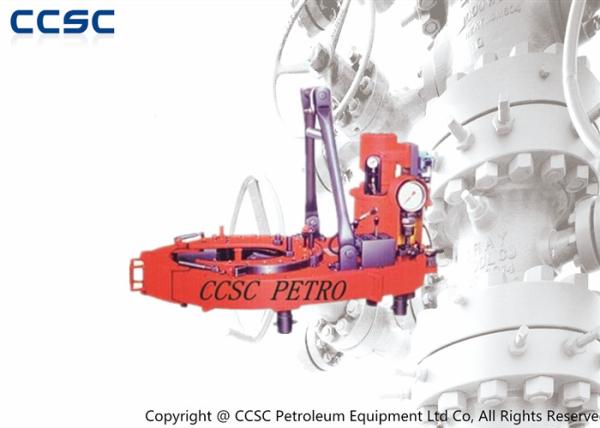

API Approved Hydraulic Power Tongs , Carbon Steel Hydraulic Casing Tongs

Brand Name : CCSC

Model Number : Casing Power Tong

Certification : API 7K

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T

Delivery Time : 30-40days

Packaging Details : Plywood box

Model : TQ178, TQ340, TQ356, TQ508

Machine Type : Drilling Tool

Material : Carbon Steel

Application : Oil

Processing Type : Casting

Color : Red

Contact Now

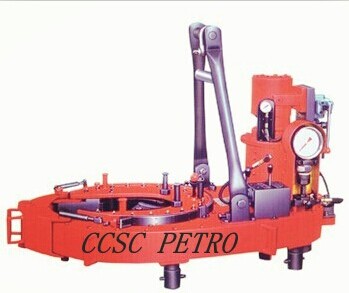

Hydraulic casing tong - Casing Power Tong with API Certrificated

Hydraulic casing tong - casing power tong is a wellhead handling tool which is using for quick and safe making up and breaking out of casing,they are strictly designed and manufactured in according with API 7K,size ranges available to meet your casing size.

API Approved Hydraulic Power Tongs , Carbon Steel Hydraulic Casing Tongs

Available Specification

Model Applicable pipe diameter Max Torque (KN.M) Hydraulic Tong Head Speed (rpm)
mm inch high gear mid gear low gear

Pressure

(Mpa)

 Flow (L/min) high gear mid gear low gear
TQ178-16 101.6-178 4-7 2.4-3 / 14.5-17.5 18 110-160 54-97 / 9-13.1
TQ178-16Y 101.6-178 4-7 2.4-3 / 15-18 18 110-160 54-79 / 9-13
TQ340-20A 101.6-340 4-13 3/8 3.7 / 15-20 16 110-160 50-80 / 6-14
TQ340-35 114.3-340 4 1/2-13 3/8 2.5-3 6.0-7.5 32-40 18 110-160 60-86 21-30 2.6-5.3
TQ340-35A 114.3-340 4-13 3/8 4.0-5.0 / 27-30 18 110-160 80-98 / 12-16
TQ340-35Y 114.3-340 4 1/2-13 3/8 4.0-5.6 / 26-35.2 21 110-170 57-95 / 9-15
TQ340-50 114.3-340 5 1/2-13 3/8 3.4-4.5 11 44-56 17.2 110-200 52-75 27.4 4.2-6
TQ356-55 114.3-356 4 1/2-14 3.4-4.5 / 45-57.4 16.6 110-160 52-76 / 3.9-5.6
TQ508-70Y 244.5-508 9 5/8-20 8.4-10.7 / 48.9-70.5 20 110-170 26-43.6 / 4-6.6
